SPECIFICATIONS

Application: Structure Ceramic

Bending Strength: 30 Mpa

Brand Name: STA Universe

Compressive Strength: 55 Mpa

Material: Boron Nitride

Place of Origin: Henan, China

Resistivity: >1014 Ω. m

Thermal Expansion Coefficient: 1.5 10-6/K

Type: Ceramic Plates

Typical Application: Semiconductory Industry, High Temperature Furance

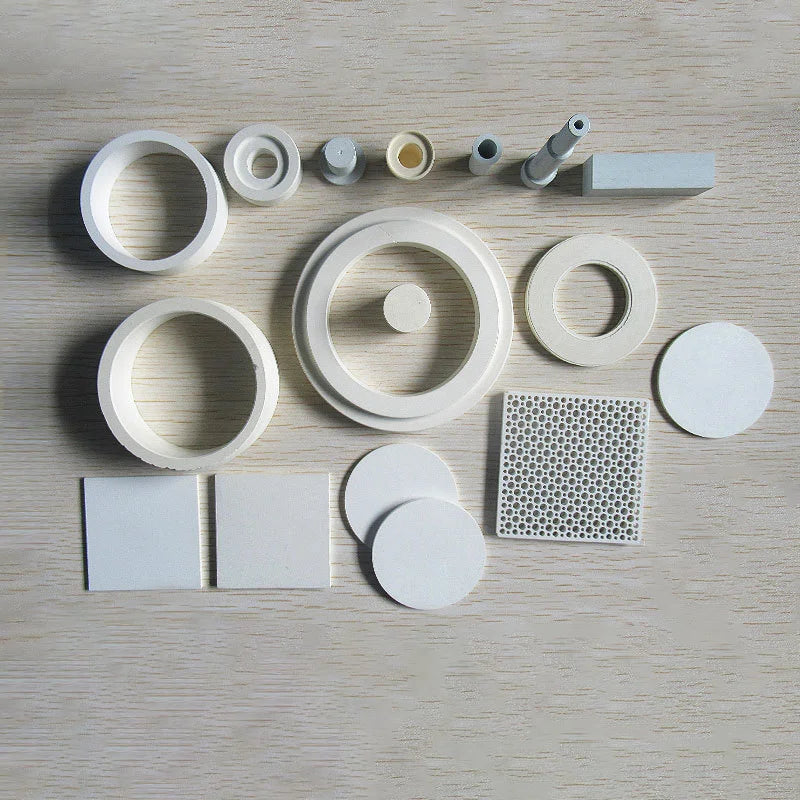

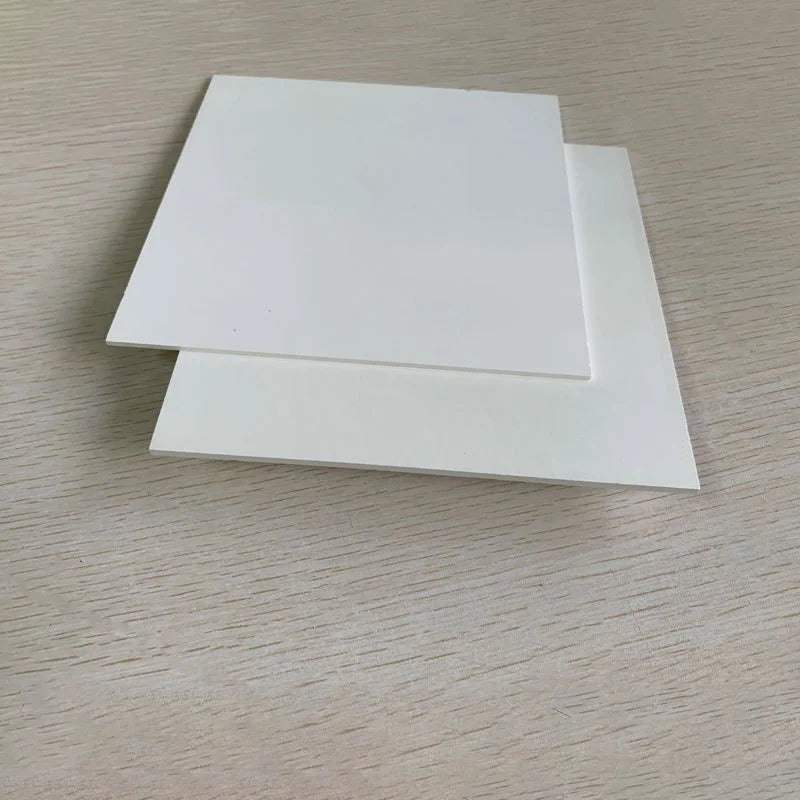

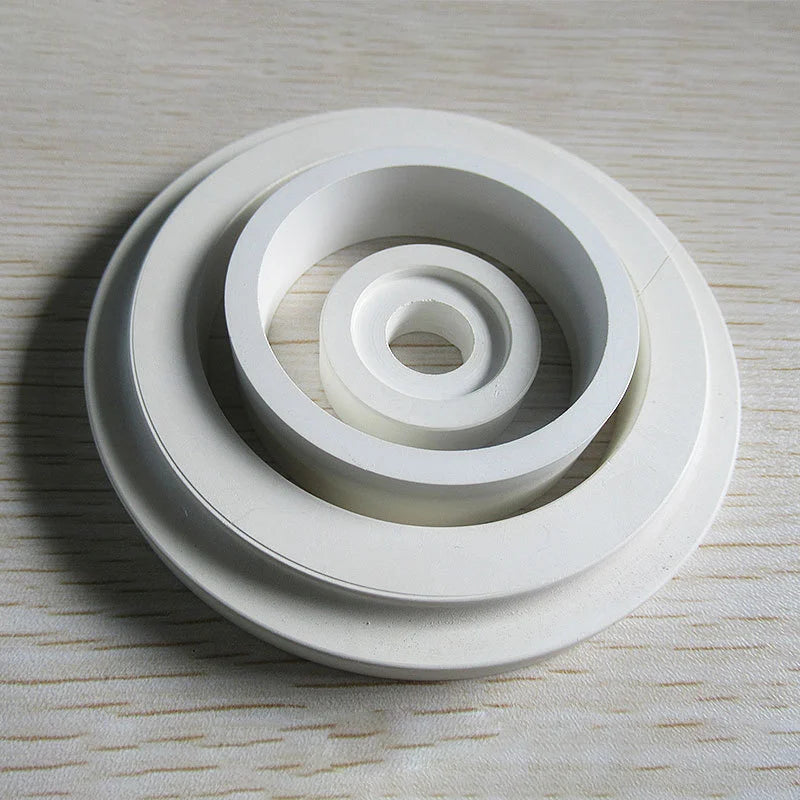

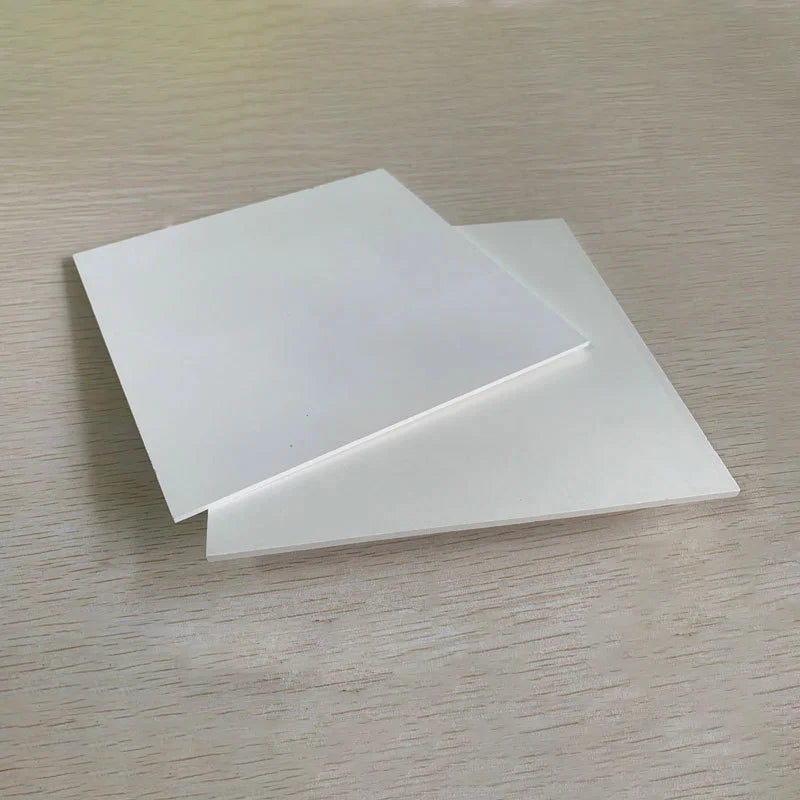

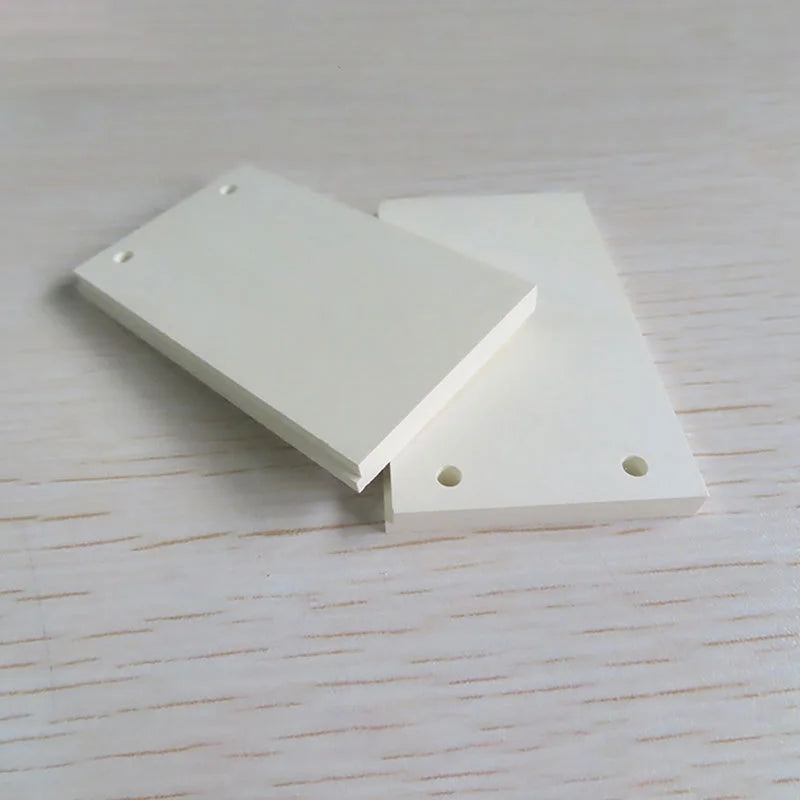

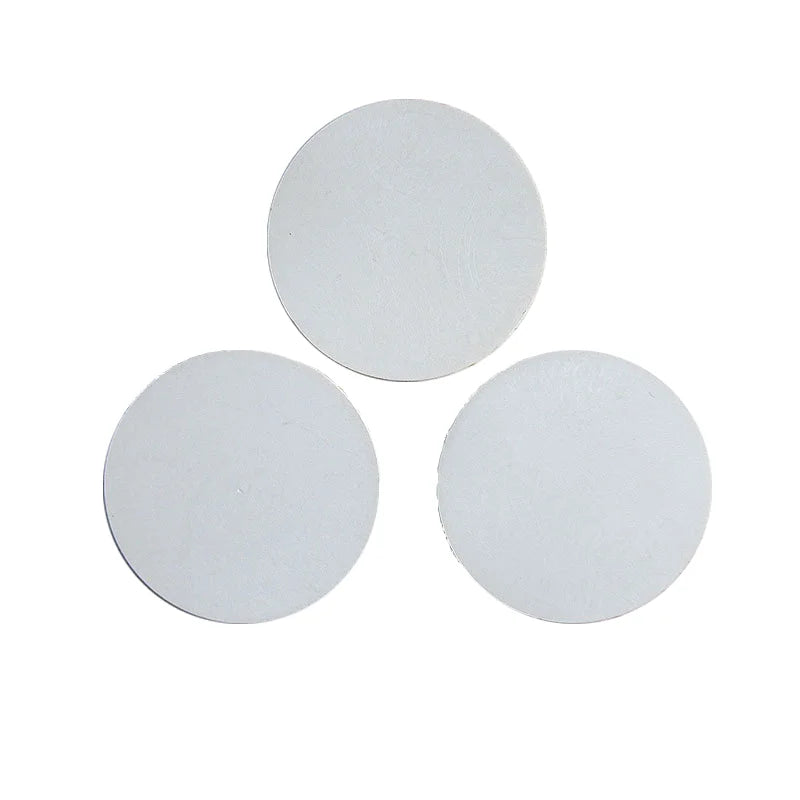

Boron Nitride, also known as BN, hexagonal boron nitride (H-BN), and hot-pressed boron nitride, is a good self-lubricate ceramic that can withstand high temperature and maintain its lubricating capability in a high vacuum environment. Hexagonal boron nitride (H-BN) behaves similarly with graphite mechanically but offers excellent electrical resistance. The Boron Nitride Plates and Boron Nitride Sheets from STA Universe are made from hot-pressed boron nitride blank.

Applications
The Boron Nitride Plate / Sheet from STA Universe can withstand high temperatures in a high vacuum environment, and it has excellent corrosion resistance and electrical resistance. Thus, Boron Nitride Plates / Sheets have a wide range of applications, such as:
1. Electric insulators in vacuum system
2. Insulators for high-temperature furnace
3. Spacers for glass melting
4. Boron Nitride parts for ion injection equipment

Properties
1. Excellent thermal shock resistance
2. High electrical resistivity
3. Low density
4. High thermal conductivity
5. Anisotropic
6. Corrosion-resistant
7. Good chemical inertness
8. High-temperature material
9. Non-wetting
10. High dielectric breakdown strength, >40 KV/mm
11. Low dielectric constant, k=4
12. Excellent machinability

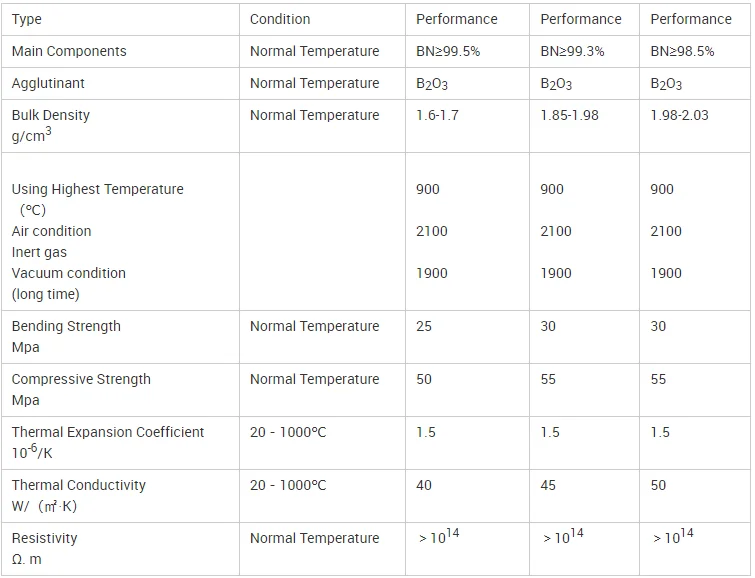

Performance Index Of BN Ceramics

Company Profile

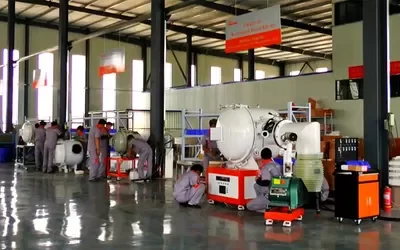

located in Henan, China, Zhengzhou STA Universe Group Co., Ltd is brazing the trail in the refra-ctory materials industry. It was founded in 2013. We have our own fully automated plants. Since the day the company was established, we have been focusing on the development and innovation of refractory materials and high temperature furnace, striving to provide customers with top-notch products. Our products are widely used in laboratories, metallurgy, petrochemical and other fields, which are exported to more than 70 countries and regions around the world, such as Europe, America, Oceania, Southeast Asia, and Middle East.
